용도별 Model 구분
● 실험실 냉장고: LKPv 6523 | LKPv 6520 | LKUv 1613 |LKUv 1610 | LKUexv 1610(방폭형)
● 헬스케어 분야 냉장고: HMFvh 5501 | HMFvh 5511
● 과학 분야 냉장고: SRFvg 4001 | SRFvg 4011 | SRFvh 400 | SRFvg 4011 | SRFfg 5501
냉장고
PRODUCTS
실험실용
냉장고
LKPv 6523
LKPv 6520
LKUv 1613

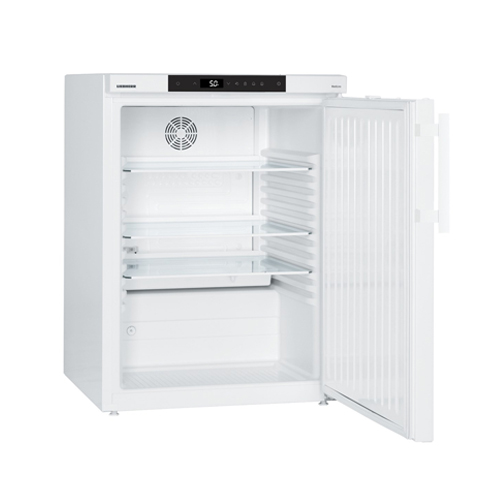

LKUexv 1610
(Sparkfree Model)
SPEC 비교
| Specificatons | LKPv 6523 | LKPv 6520 | LKUv 1613 | LKUexv 1610 |
|---|---|---|---|---|
| Gross capacity | 617 l | 602 l | - | - |
| Total gross / net volume | 617 / 430 l | 602 / 430 l | 152 / 132 l | 141 / 130 liters |
| Exterior dimensions in mm(W/D/H) | 700 / 830 / 2160 | 700 / 830 / 2160 | 601 / 618 / 820 | 601 / 618 / 820 |
| Interior dimensions in mm(W/D/H) | 533 / 650 / 1500 | 533 / 650 / 1500 | 440 / 435 / 670 | 440 / 435 / 670 |
| Energy consumption per year[1] | 571 kWh/a | 497kWh/a | 369 kWh | 369 kWh |
| Ambient temperature range | +10℃ to +40℃ | +10℃ to +40℃ | +10℃ to +35℃ | +10℃ to +35℃ |
| Refrigerant | R290 | R290 | R600a | R600a |
| Sound power level | 58 dB(A) | 58 dB(A) | 47 dB(A) | 47 dB(A) |
| Voltage | 220-240V~ | 220V ~ | 220-240V~ | 220-240V~ |
| Cooling system | forced-air | forced-air | forced-air | forced-air |
| Defrost | automatic | automatic | automatic | automatic |
| Temperature range | 0℃ to +16℃ | -2℃ to +16℃ | +3℃ to +16℃ | +3℃ to +16℃ |
| Gradient[2]/max. fluctuation[3] | 2.0℃ /1.6℃ | 1.8℃ /1.0℃ | 5.1℃ /4.9℃ | 3.9℃ /4.8℃ |
| Door material | glass door | steel | glass door | steel |
| Internal Liner material | 304-grade stainless steel | 304-grade stainless steel | commercial grade moulded polystyrol | commercial grade moulded polystyrol |
| Type of control | electronic controller | electronic controller | electronic controller | electronic controller |
| Temperature display | external digital | external digital | external digital | external digital |
| Power failure alarm | immediately upon power failure for 72h | immediately upon power failure for 72h | when mains power return | when mains power return |
| Fault:warning signal | visual and audible | visual and audible | visual and audible | visual and audible |
| Interface/Volt-free alarm contact | RS 485/? | RS 485/yes | RS 485/yes | RS 485/yes |
| Interior light | LED lighting, with separate switch | - | LED lighting, with separate switch | - |
| Adjustable shelves | 4 | 4 | 3 | 3 |
| Usable shelf area in mm(W/D) | 533 / 650 | 533 / 650 | 440 / 420 | 440 / 420 |
| Shelf material | wire shelves plastic-coated | wire shelves plastic-coated | wire shelves plastic-coated | glass |
| Shelf loading | 60 kg | 60 kg | 45 kg | 40 kg |
| Castors | castors with brake at the front, fixed castors at the rear | castors with brake at the front, fixed castors at the rear | - | - |
| Handle | full-length integrated handle | full-length integrated handle | slimline handle with integrated opening mechanism | slimline handle with integrated opening mechanism |
| Lock | fitted | fitted | fitted | fitted |
| Self-closing door | yes | yes | yes | yes |
| Door hinges | right, reversible on site | right, reversible on site | right, reversible on site | right, reversible on site |
| Gross/net weight | 164 / 138 kg | 154 / 128 kg | 45 / 43 kg | 41 / 38 kg |
헬스케어 분야
냉장고
SPEC 비교

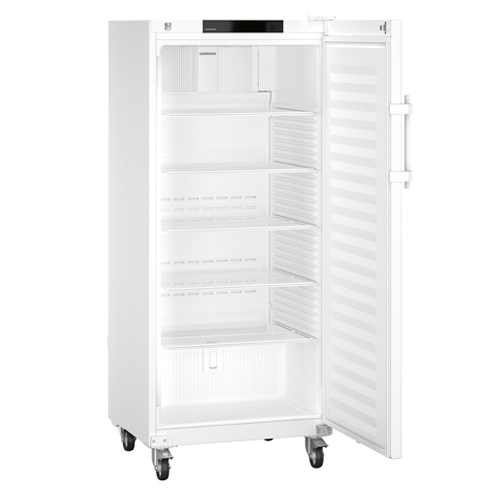

| Specificatons | HMFvh 5501 | HMFvh 5511 |
|---|---|---|
| Gross/Net capacity | 558 / 436 liters | 588 / 435 liters |
| Exterior dimensions in mm(W/D/H) | 747 / 769 / 1793 | 747 / 769 / 1793 |
| Interior dimensions in mm(W/D/H) | 600 / 536 / 1460 | 600 / 536 / 1460 |
| Ambient temperature range | +10℃ to +35℃ | +10℃ to +35℃ |
| Refrigerant | R 600a | R 600a |
| Connection rating | 2.0 A | 2.0 Aa |
| Frequency/ voltage | 60 Hz / 220V~ | 60 Hz / 220V~ |
| Defrost | automatic | automatic |
| Temperature range | +5℃ | +5℃ |
| Housing material/Color | Stahl / - | Stahl / - |
| Door material | Full door | Glass |
| Liner material | moulded polystyrol white | moulded polystyrol white |
| Temperature display | external digital | external digital |
| Alarm in case of malfunction | visual and acoustic | visual and acoustic |
| Interface | WlAN / LAN | WlAN / LAN |
| Volt-free alarm contact | yes | yes |
| adjustable shelves | 5 | 5 |
| Shelf loading | 60 kg | 60 kg |
| Lock | electronic, with remote control | electronic, with remote control |
| Self-closing door | yes | yes |
| Door hinges | right, reversible | right, reversible |
| Insulation | 45 / 57 mm | 45 / 26 mm |
| Gross /net weight | 106 / 100 kg | 105 / 97 kg |
과학분야
냉장고
SPEC 비교
| Specificatons | SRFvg 4001 | SRFvg 4011 |
|---|---|---|
| Gross/Net capacity | 394 / 298 liters | 420 / 297 liters |
| Exterior dimensions in mm(W/D/H) | 597 / 654 / 1884 | 597 / 654 / 1884 |
| Interior dimensions in mm(W/D/H) | 460 / 423 / 1660 | 460 / 423 / 1642 |
| Ambient temperature range | +10℃ to +35℃ | +10℃ to +35℃ |
| Refrigerant | R 600a | R 600a |
| Connection rating | 2.0 A | 2.0 A |
| Frequency/ voltage | 60 Hz / 220V~ | 60 Hz / 220V~ |
| Defrost | automatic | automatic |
| Temperature range | +3℃ to +16℃ | +3℃ to +16℃ |
| Housing material/Color | Stahl / - | Stahl / - |
| Door material | Full door | Glass |
| Liner material | moulded polystyrol white | moulded polystyrol white |
| Temperature display | external digital | external digital |
| Alarm in case of malfunction | visual and acoustic | visual and acoustic |
| Interface | WlAN/LAN (optional) | WlAN/LAN (optional) |
| Volt-free alarm contact | yes | yes |
| adjustable shelves | 5 | 5 |
| Shelf loading | 45 kg | 45 kg |
| Lock | mechanical | mechanical |
| Self-closing door | yes | yes |
| Door hinges | right, reversible | right, reversible |
| Insulation | 45 / 57 mm | 45 / 26 mm |
| Gross /net weight | 71 / - kg | 86 / 80 kg |
과학분야
냉장고
SPEC 비교

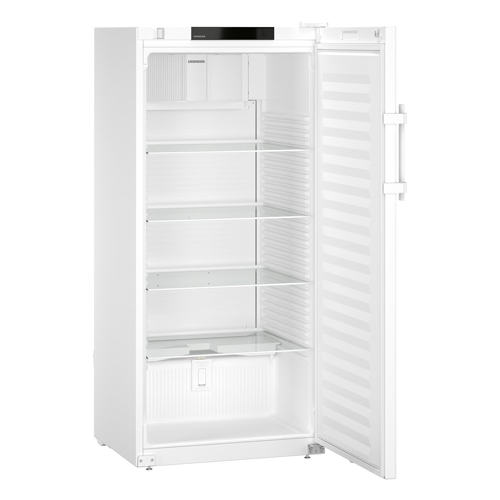

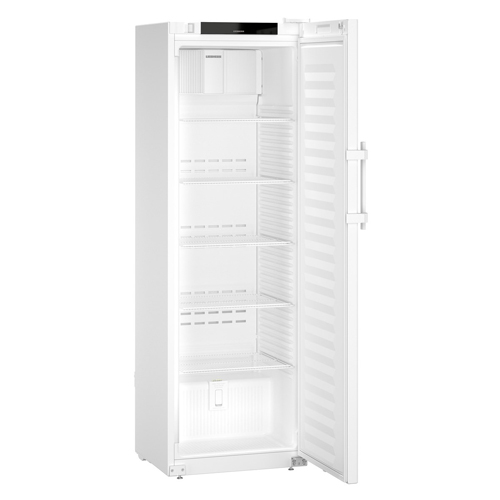

| Specificatons | SRFvh 4001 | SRFvh 4011 | SRFfg 5501 |
|---|---|---|---|
| Gross/Net capacity | 394 / 298 l | 420 / 297 l | 558 / 441 l |
| Exterior dimensions in mm(W/D/H) | 597 / 654 / 1884 | 597 / 654 / 1884 | 747 / 769 / 1684 |
| Interior dimensions in mm(W/D/H) | 460 / 423 / 1660 | 460 / 423 / 1660 | 600 / 537 / 1460 |
| Ambient temperature range | +10℃ to +35℃ | +10℃ to +35℃ | +10℃ to +35℃ |
| Refrigerant | R 600a | R 600a | R 600a |
| Connection rating | 2.0 A | 2.0 A | 2.0 A |
| Frequency/ voltage | 60 Hz / 220V~ | 60 Hz / 220V~ | 50 Hz / 220V~ |
| Defrost | automatic | automatic | automatic |
| Temperature range | +3℃ to +16℃ | +3℃ to +16℃ | +3℃ to +16℃ |
| Housing material/Color | Stahl / - | Stahl / - | Steel / white |
| Door material | Full door | Glass | Full door |
| Liner material | moulded polystyrol white | moulded polystyrol white | moulded polystyrol white |
| Temperature display | external digital | external digital | external digital |
| Alarm in case of malfunction | visual and acoustic | visual and acoustic | visual and acoustic |
| Interface | WlAN/LAN | WlAN/LAN | WlAN/LAN (optional) |
| Volt-free alarm contact | yes | yes | yes |
| adjustable shelves | 5 | 5 | 5 |
| Shelf loading | 45 kg | 45 kg | 40 kg |
| Lock | mechanical | mechanical | mechanical |
| Self-closing door | yes | yes | yes |
| Door hinges | right, reversible | right, reversible | right, reversible |
| Insulation | 45 / 57 mm | 45 / 26 mm | 45 / 57 mm |
| Gross /net weight | 70 / 64 kg | 86 / 80 kg | 87 / 80 kg |
