시약냉장고 & 저온냉동고 & 초저온냉동고 & 인큐베이터 & Co2인큐베이터

phcbi_logo

PHCbi is …

PHCbi는 생명 과학 및 의료 기기 분야에서 혁신적인 솔루션을 제공하는 글로벌 선도 기업입니다. PHC Holdings Corporation의 브랜드로, 연구실, 병원, 제약회사, 생명공학 및 대학 연구소 등 다양한 분야에서 활용되는 고품질 제품을 제공합니다. 주요 제품으로는 시약냉장고, 혈액냉장고, 인큐베이터, CO2 인큐베이터 등이 있으며, 이들 제품은 정밀한 온도와 CO2 조절 기능을 통해 샘플과 시약의 안전한 보관 및 배양 환경을 보장합니다. PHCbi는 최신 기술과 엄격한 품질 관리로 고객의 연구와 진료 효율성을 극대화하며, 신뢰할 수 있는 파트너로 자리매김하고 있습니다. 연구 및 의료 분야의 발전을 위해 끊임없이 노력하는 PHCbi는 고객의 다양한 요구에 부응하는 맞춤형 솔루션을 제공합니다.

PRODUCTS

초저온냉동고 (Ultra Low Freezers)

초저온냉동고
[MDF-1156]
초저온냉동고
[MDF-C2156VAN]
초저온냉동고
[MDF-DU901VH]
초저온냉동고
[MDF-DU702VH]
Specifications MDF-1156 MDF-C2156VAN MDF-DU901VH MDF-DU702VH
External Dim.(WxDxH, mm) 1400 x 800 x 945 1730 x 765 x 1010 1150 x 870 x 1993 1030 x 882 x 1993
Internal Dime.(WxDxH, mm) 500 x 450 x 572 760 x 495 x 615 1010 x 600 x 1400 870 x 600 x 1400
Effective Capacity 128 litres 231 litres 845 litres 729 litres
Cooling Performance -152℃ -150℃ -86℃ -40 to -86 °C
Interior Cabinet Aluminum plate Aluminium Painted steel Painted steel
Net Weight(Approx.) 272 kg 318 kg 328 kg 278 kg
Insulation Formed-in-place rigid polyurethane PUF / VIP Plus
Compressor High stage side: Hermetic type, 1100W
Low stage side: Hermetic type, 1100W
1100 W 2 x 1000 W 2 x 750 W
Temperature Display Digital display LED LCD Touch Screen
Sensor Platinum resistance(Pt. 100Ω) Pt-1000
초저온냉동고
[MDF-DU502VH]
초저온냉동고
[MDF-DU702VX]
초저온냉동고
[MDF-DU502VX]
극저온냉동고

[MDF-C8V1]

Specificatons MDF-DU502VH MDF-DU702VX MDF-DU502VX MDF-C8V1
External Dim.(WxDxH, mm) 790 x 882 x 1993 1030 x 882 x 1993 790 x 882 x 1993 550 x 685 x 945
Internal Dim.(WxDxH, mm) 630 x 600 x 1400 870 x 600 x 1400 630 x 600 x 1400 450 x 490 x 425
Volume 528 litres 729 litres 528 litres 84 litres
Net Weight(Approx.) 246 kg 328 kg 285 kg 70 kg
Cooling Performance -86 to -40 °C -86 °C -86 °C -80°C
Controller Microprocessor, non-volatile memory
Compressors 2 x 750 W 2 x 1100 W 400 W
Insulation material PUF / VIP Plus V.I.P.PLUS + Rigid polyurethane foam(HC)
Outer doors/Lid 1 1 1 1
Inner Doors/Lid 2 pieces (insulated) 2 2 1piece(PS + PE foam)

약품냉동고 (Biomedical Freeezers)

약품냉동고
[MDF-MU539H]
약품냉동고

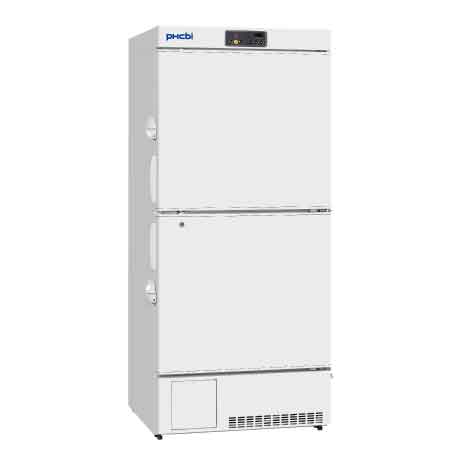

[MDF-MU549DH]
Biomedical Freeezers

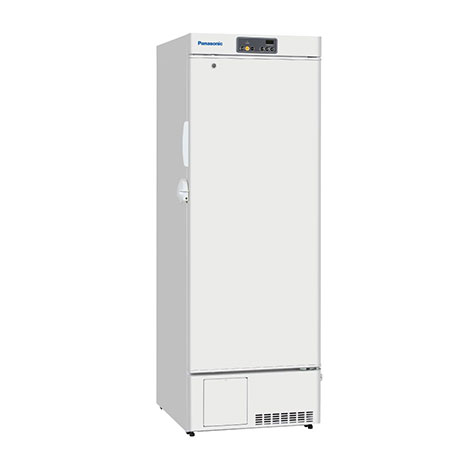

[MDF-MU339H]
Biomedical Freeezers
[MDF-U5412]
Biomedical Freeezers
[MDF-U443]
Specificatons MU539H MU549DH MU339H U5412 U443
External Dim.(WxDxH, mm) 793 x 770 x 1802 793 x 770 x 1802 616 x 770 x 1802 804 x 772 x 1802 800 x 832 x 1810
Internal Dim.(WxDxH, mm) 649 x 614 x 1262 649 x 614 x 600(per chamber) x 2 472 x 614 x 1262 658 x 607 x 1272 800 x 832 x 1810
Volume 504 litres 479 litres 369 litres 428 litres 426 litres
Net Weight 143 kg 165 kg 122 kg 134 kg 213 kg
Cooling Performance -30 °C -40 °C -30 °C -40 °C -40 °C
Temperature Setting Range -35 ~ -18 °C -45 ~ -18 °C -35 ~ -18 °C -45 ~ -18 °C -44 ~ -18 °C
Temperature Control Range -30 ~ -20 °C -45 ~ -20 °C -30 ~ -20 °C -40 ~ -20 °C -40 ~ -20 °C
Controller Microprocessor, non-volatile memory Microprocessor
Display LCD LED
Temperature sensor Thermistor
Refrigeration System Direct cooling system Direct Forced air circulation
Compressors 250 W 400 W 250 W 400 W H:400/L:750 W
Exterior material Painted steel
Interior material Painted steel Styrol resin
Insulation material PUF
Insulation Thickness 70 mm 80 mm
Outer doors/Lid 2 2 1 - -
Outer door lock Y Y Y Y Y
Shelves 6 6 (Dim.: W624 x D510 mm) 6 - -
Max. Load - Per Shelf 30 kg 30 kg 30 kg U:30/L:30 kg 50 kg
Max. Load - Total - - - 100 kg 200 kg
Access Port 1 2 (1 per chamber) 1
Access port position back left
Access port diameter Ø 30 mm Ø 40 mm
Casters 4 (2 leveling feet)
Power failure Alarm Visual-Buzzer-Remote
High temperature Alarm Visual-Buzzer-Remote
Low Temperature Alarm Visual-Buzzer-Remote
Filter Alarm - - - - V-B
Door open Alarm - - - - V-B
Power Supply Local
Noise level 42 dB[A] 51 dB[A]

약품냉장고

약품냉장고
[MPR-722]
약품냉장고 722R
[MPR-722R]
약품냉장고

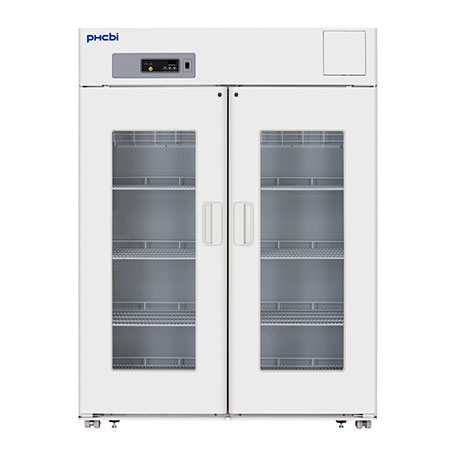

[MPR-1412]
약품냉장고

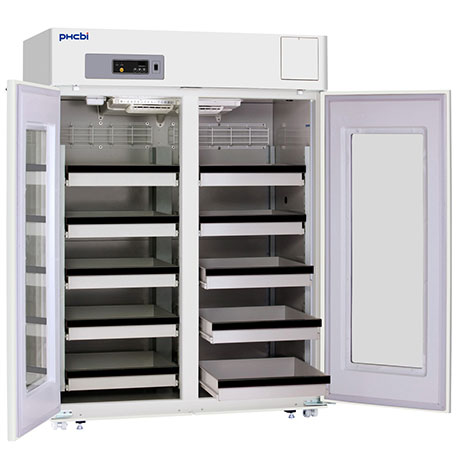

[MPR-1412R]
Specificatons MPR-722 MPR-722R MPR-1412 MPR-1412R
External Dim.(WxDxH, mm) 770 x 830 x 1955 1440 x 830 x 1950
Internal Dim.(WxDxH, mm) 650 x 710 x 1500 1320 x 710 x 1500
Volume 684 liters 671 liters 1364 liters 1359 liters
Net Weight 174 kg 193 kg 248 kg 287 kg
Temperature Setting Range +2 to +23 °C
Temperature Control Range +2 to +14 °C (at fridge part center, AT -5 to 0℃)
+2 to +23 °C (at fridge part center, AT 0 to 35℃)
Controller Microprocessor with non-volatile memory (Safety Lock with keypad)
Display LED
Temperature sensor Thermistor
Cooling Method Forced cool air circulation
Defrost Method Forced type (cycle defrost), fully automatic
Refrigerant HFC and HFO combined (CFC-Free)
Exterior material Painted steel
Interior material Painted steel
Insulation material Rigid polyurethane foamed insulation (CFC-free)
Outer doors 1 door, double pane glass, self closing 2 doors, double pane glass, self closing
Outer door lock Y Y Y Y
Shelves 4 wire shelves (polyethylenecoated, 565 x 604 mm, adjustable) N 8 wire shelves (polyethylene-coated, 530 x 604 mm, adjustable) 10 solid steel drawers (painted steel, 550 x 530 x 100 mm, adjustable)
Drawers N 5 solid steel drawers (painted steel, 550 x 530 x 100 mm) N N
Max. Load - Per Shelf/Drawer 50 kg 40 kg 50 kg 40 kg
Max. Load - Total 200 kg 400 kg
Access Port 3
Access port position Left / Right / Top
Access port diameter Ø 30 mm
Casters 4
Interior Light Fluorescent
Power failure Alarm Remote(V-B optional)
High temperature Alarm Visual-Buzzer-Remote
Low Temperature Alarm Visual-Buzzer-Remote
Door open Alarm Visual-Buzzer
Power Supply 220V / 60Hz
Noise level 48 dB[A]

냉장고(+냉동)

냉장냉동고

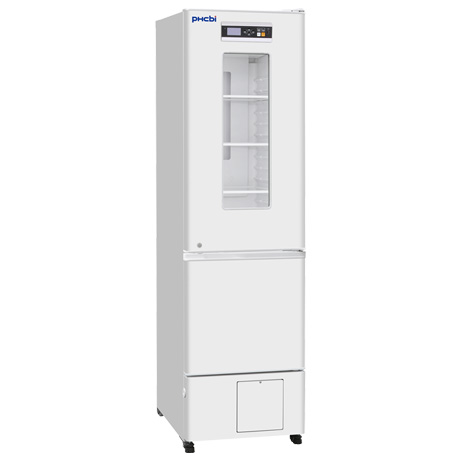

[MPR-N250FH]
냉장냉동고
[MPR-N250FSH]
냉장냉동고
[MPR-N450FH]
냉장냉동고
[MPR-N450FSH]
Specificatons N250FH N250FSH N450FH N450FSH
External Dim.(WxDxH, mm) 510 x 640 x 1810 800 x 640 x 1810
Internal Dim.(WxDxH, mm) 430 x 516 x 903 mm (Ref)
390 x 501 x 413 mm (Frz)
720 x 516 x 913 mm (Ref)
680 x 470 x 415 mm (Frz)
Volume 179 / 80 litres (Ref / Frz) 326 / 136 litres (Ref / Frz)
Net Weight 95 kg 91 kg 129 kg 121 kg
Temperature Setting Range +2 to +14 °C (Ref)
-35 to -15℃ (Frz)
+2 to +14 °C (Ref)
-30 to -20℃ (Frz)
Temperature Control Range +2 to +14 °C (Ref)
-30 to -20 °C (Frz)
Controller Microprocessor with non-volatile memory Microprocessor
Display White graphic OLED
Temperature sensor Thermistor
Cooling Method Fan forced air circulation (Ref) / Direct cooling (Frz)
Defrost Method Cyclical defrost (Ref) / Manual (Frz)
Refrigerant HC refrigerant (Ref / Frz)
Exterior material Painted steel
Interior material ABS resin (Ref) / Painted steel (Frz)
Insulation material Cyclopentane foamed polyurethane PUF
Outer doors 2, glass window (1) 2, Solid doors (without glass window) 4, glass window (2) 4, Solid doors (without glass window)
Outer door lock Cylinder lock x1 Y (Ref / Frz)
Shelves Tempered glass (3) / Coated steel wires (1) (Ref / Frz) Tempered glass (3) / Coated steel wires (2) (Ref / Frz)
Drawers Y (Ref / Frz)
Max. Load - Per Shelf/Drawer 20 kg (Ref) /10 kg (Frz) 25 kg (Ref) /15 kg (Frz) Y (Ref / Frz)
Access Port 2 (1 for Ref, 1 for Frz) Y (Ref / Frz)
Access port position Back
Access port diameter Ø 30 mm
Casters 4
Interior Light LED
Power failure Alarm Remote(V-B optional)
High temperature Alarm Visual-Buzzer-Message-Remote
Low Temperature Alarm Visual-Buzzer-Message-Remote
Door open Alarm Visual-Buzzer-Message
Power Supply 220V / 60Hz
Noise level 40 dB[A] 41 dB[A]

인큐베이터

인큐베이터
[MIR-154(Cool)]
인큐베이터
[MIR-254(Cool)]
인큐베이터
[MIR-554(Cool)]
Specificatons MIR-154 MIR-254 MIR-554
External dim.(WxDxH, mm) 700 x 580 x 1018 700 x 580 x 1618 800 x 832 x 1810
Internal dim.(WxDxH) 620 x 368 x 555 620 x 368 x 1088 640 x 550 x 1160
Effective capacity 123 liters 238 liters 406 liters
Exterior finish Galvanised steel with baked-on finish
Interior finish Stainless steel
Door Galvanised steel with baked-on finish, triple-pane glass Galvanised steel with baked-on finish,
triple-pane glass with observation door
Shelves Polyethylene coated steel wire, adjustable 3 Polyethylene coated steel wire, adjustable 5
Insulation Foamed-in-place rigid polyurethane
Circulation system Forced air circulation
Compressor Hermetic type Single phase, Output 150W Hermetic type Single phase, Output 250W
Evaporator Fin and tube type, forced circulation
Condenser Wire and tube type natural air cooling system
Defrosting system Manual / Automatic
Heater Cord heater 141 W Cord heater 218 W Cord heater 322 W
Temperature setting indication Dual setting with keylock, digital display
Temperature control Microprocessor PID system(when compressor operates, ON-OFF control)
Temperature sensor Thermistor
Automatic setting temperature alarm When temperature deviates more than ±1.0℃ to ±5.0℃, visual and audible alarm
Over temperature protection device Visual and audible alarm
Programmed operation 12-step repeat from 1-98 times or unlimited. Max. 10 programs memorized
Temperature range -10.0℃ to +60.0℃(Ambient temperature: +5℃ to +35℃, no load)
Temperature fluctuation ±0.2 degrees at Heater PID control(SV 50℃, Ambient temperature: 20℃, no load)
±1.5 degrees at Compressor ON-OFF control(SV 5℃, Ambient temperature: 20℃, no load)
Temperature uniformity ±0.5 degrees (Setting temperatujre 37℃, Ambient temperature: 20℃, no load)
Interial lamp 15W x 1, Fluorescent lamp(Setting temperature -10℃ to 60℃)
Net weight 78 kg 108 kg 195 kg
Accessories - - Key 1 set
인큐베이터

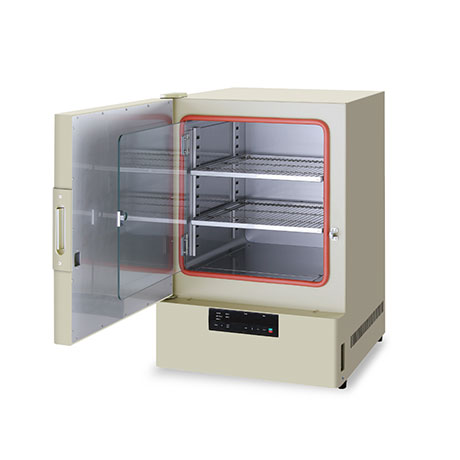

[MIR-H163(Heat)]
인큐베이터
[MIR-H263(Heat)]
Specificatons MIR-H163 MIR-H263
External dim.(WxDxH, mm) 580 x 595 x 820 730 x 645 x 870
Internal dim.(WxDxH, mm) 450 x 460 x 450 600 x 510 x 500
Effective capacity 93 liters 152 liters
Circulation system Natural convection(Air Jacket system)
Temperature control system Microprocessor PID system
Timer Automatic timer with delay function 00:00- 99:59
Heater Sheathed heater 200 W Sheathed heater 300 W
Sensor Thermistor
Temperature contorl range Ambient temperature +5 ~ +80℃
Temperature fluctuation ±0.2℃(~60℃) ~ ±0.5℃(60~ 80℃)
Temperature uniformity ±1.0℃(AT 20℃, Setting temperature 37℃)
Net weight 50 kg 67 kg
Display LED
Exterior material Painted steel
Interior material SS SUS-304
Insulation material Glass fibre
Outer doors 1
Inner doors 1
Shelves 2 3
Out of Temperature Setting Visual-Buzzer
High Temperature Visual-Buzzer
Power Supply Local Local
인큐베이터

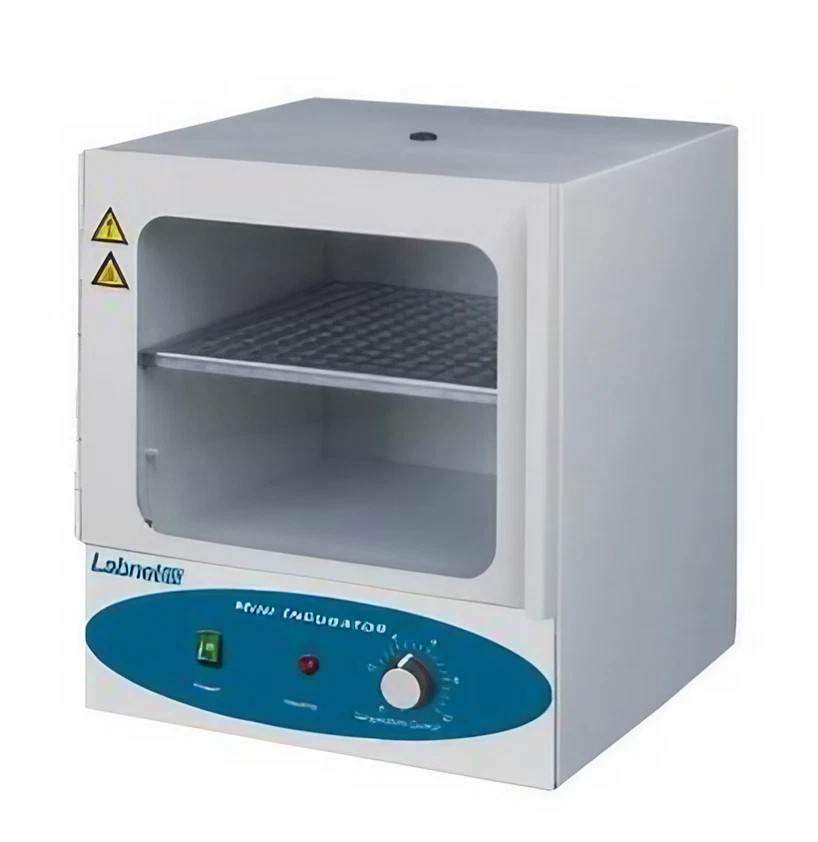

[Mini-Incubator(Heat)]
digital incubator

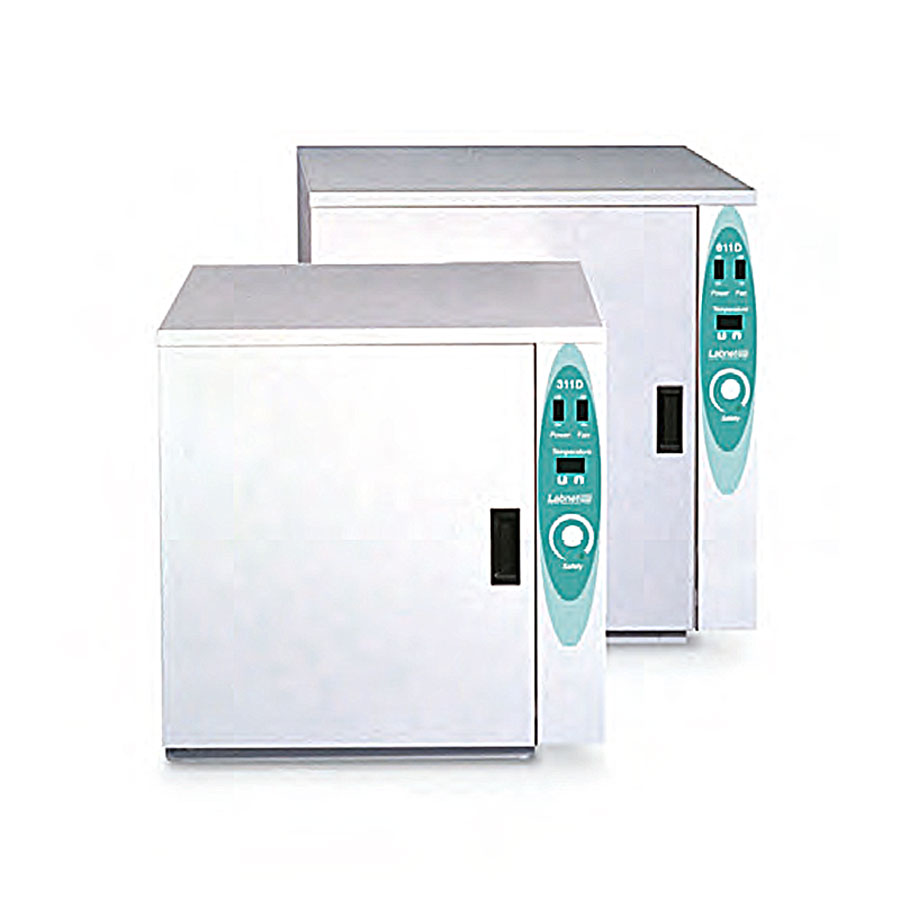

[Digital-Incubator(Heat)]
Specificatons Mini Incubator Digitgal(311D) Digitgal(611D)
Capacity 9.2 L 77.9 L 169.9 L
Temperature range Ambient +5 to 60℃ Ambient +5 to 95℃
Stability/Uniformity (stability)
±0.6℃ at 37℃(N.I.S.T. traceable thermometer)
(uniformity)
±0.2℃ at 37℃
(uniformity)
±0.25℃ at 37℃
Exterior dim.(WxDxH, mm) 285 x 280 x 335 686 x 510 x 737 785 x 660 x 864
Interior dim.(WxDxH, mm) 230 x 200 x 200 432 x 356 x 510 533 x 510 x 635
Weight 8.3 kg 63.6 kg 84 kg

CO2인큐베이터

CO2 Incubators

Co2인큐베이터
[MCO-50AIC]
CO2인큐베이터

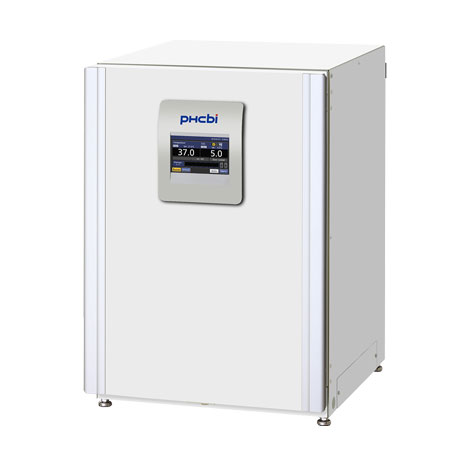

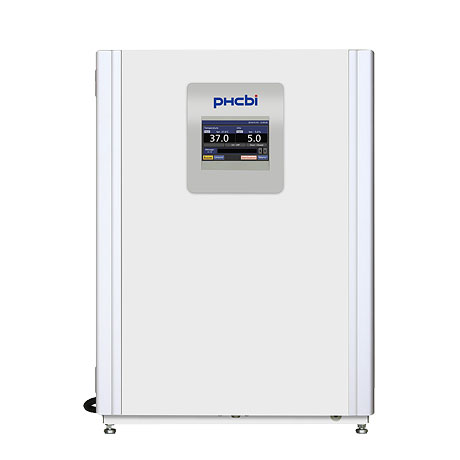

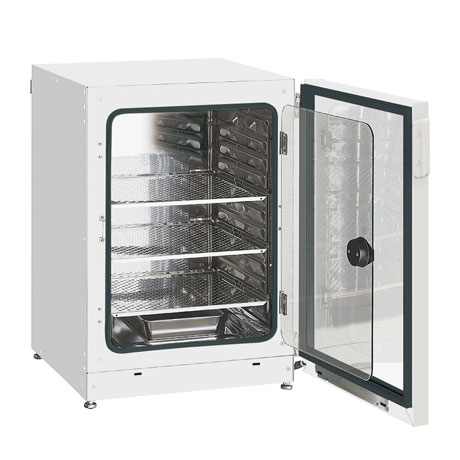

[MCO-170AC]
CO2인큐베이터

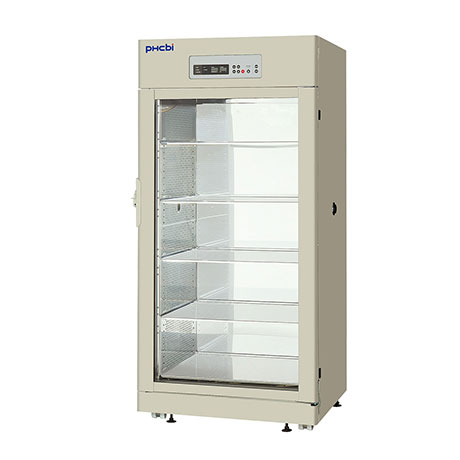

[MCO-80IC]
Specificatons 50AIC 170AC 80IC
External Dim.(WxDxH, mm) 480 x 550 x 585 620 x 730 x 905 986 x 853 x 2040
Internal Dim.(WxDxH, mm) 370 x 363 x 385 490 x 523 x 665 806 x 693 x 1524
Volume 50 liters 165 liters 851 liters
Net Weight 45 kg 74 kg 275 kg
Temperature Control Range
& Fluctuation
AT+5 to +50,
±0.1 °C
AT+5 to +50,
(AT; 20°C to 35°C) ±0.1 °C
Temperature Uniformity ±0.25 °C ±0.5 °C
CO2 Control Range & Fluctuation 0 ~ 20, ±0.15 %
Humidity Level & Fluctuation 95, ±5 %RH Normal mode: >80 |
High mode: > 90 %RH
Temperature Sensor Thermistor
CO2 Sensor Dual IR Thermal conductivity IR
Display Digital (white graphic OLED) readable to 0.1 increments Digital (white graphic OLED) -
Exterior Material Painted Steel (rear cover not painted) Painted Steel
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Styrene AcryloNitrile copolymer Rigid polyurethane foamed-in place (CFC-Free)
Heating Method Direct Heat & Air Jacket System Horizontal laminar airflow system
Outer Doors 1 1 1 double paned glass
Outer door lock - - N/A
Field reversible door included -
Inner Doors 1 (tempered glass) -
Shelves 2 x stainless steel copper-enriched alloy 3 x stainless steel copper-enriched alloy 5 (standard)
Shelf Dim.(WxDxH, mm) 353 x 308 x 12 470 x 450 x 12 776 x 659 x 10
Max. Load Per Shelf 7 kg 30 kg
Access Port 1 2
Access Port Position On The Back Side Rear upper left Left and right hand side
Access Port Diameter Ø 30 mm Ø 40 mm
Power Failure Alarm Remote
Out of Temperature Setting Alarm Visual-Buzzer-Remote
High Temperature Alarm V-B-R
Out of CO2 Setting Alarm V-B-R
Door Open Alarm Visual-Buzzer V-B Visual
Power Supply 220V(60Hz) 220-240V(60Hz)
Noise Level 29 dB[A] 33 dB[A]
Certification - ISO13485 -
CO2인큐베이터
[MCO-170AIC]
CO2인큐베이터
[MCO-170AICUV]
[MCO-170AICD]
CO2인큐베이터
[MCO-170AICUVD]
Specificatons 170AIC 170AICUV 170AICD 170AICUVD
External Dim.(WxDxH, mm) 620 x 730 x 905 620 x 755 x 905
Internal Dim.(WxDxH, mm) 490 x 523 x 665
Volume 165 liters
Net Weight 80 kg 80 kg 79 kg 80 kg
Temperature control range & fluctuation AT +5 to +50 (AT 5°C to 35°C) AT +5 to +50, ±0.1 °C
Temperature Uniformity ±0.25 °C
CO2 setting Range & Fluctuation 0 to 20, ±0.15 %
Humidity level and fluctuation 95 ±5 %RH
(Natural evaporation with humidifying pan)
95, ±5 %RH
Sterilisation Method - Dry heat sterilisation, 180°C, 11 hours
Temperature sensor Thermistor
CO2 sensor Dual IR
Display Touch Panel (WVGA full color LCD) Colour LCD touchscreen
Exterior material Painted Steel (rear cover not painted)
Interior material Stainless Steel Copper-Enriched Alloy
Insulation material Styrene AcryloNitrile copolymer Melamine resin foam
Heating method Direct Heat & Air Jacket System Heater jacket
Outer door 1
Outer Door Lock - Standard
Field reversible door included
Inner door 1 (tempered glass) 1 1 (tempered glass)
Shelves 4 x stainless steel copper-enriched alloy
Shelf Dimensions (W x D x H) 475 x 450 x 12 mm 475 x 450 x 12 mm
Max. Load Per Shelf 7 kg
Access Port 1
Access port position on the back side Rear Upper Left on the back side
Access port diameter Ø 30 mm
Power failure Alarm Remote
Out of temperature setting Alarm V-B-R
High temperature Alarm V-B-R
Out of CO2 setting Alarm V-B-R
Door open Alarm Visual-Buzzer
Power Supply 220V / 60Hz
Noise level[4] 25 dB[A]
Certification ISO13485 - ISO13485

Tri-gas Incubators

CO2 Incubator
[MCO-50M]
멀티 가스 인큐베이터
[MCO-170M]
Specificatons 50M 170M
External Dim.(WxDxH, mm) 480 x 550 x 585 620 x 730 x 905
Internal Dim.(WxDxH) 370 x 363 x 385 490 x 523 x 665
Volume 50 liters 161 liters
Net Weight 46 kg 77 kg
Temperature Control Range & Fluctuation AT+5 ~ +50, ±0.1 °C
Temperature Uniformity ±0.25 °C
CO2 Control Range & Fluctuation 0~ 20, ±0.15 %
O2 Control Range & Fluctuation 1 -18 and 22 - 80 1 -18 and 22 - 80, ±0.2 %
Humidity Level & Fluctuation 95, ±5 %RH
Temperature Sensor Thermistor
CO2 Sensor Dual IR / Stabilised Zirconia Dual IR
O2 Sensor Stabilized Zirconia Sensor
Display Digital (white graphic OLED) readable to 0.1 increments Touch Panel (WVGA full color LCD) and USB data logging
Exterior Material Painted Steel (rear cover not painted)
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Styrene AcryloNitrile copolymer
Heating Method Direct Heat & Air Jacket System
Sterilisation Method - H2O2 Decontamination
Outer Doors 1 (Field reversible door)
Outer door lock - optional
Inner Doors 1 (tempered glass) 4 gastight - made of tempered glass
Shelves 2 x stainless steel copper-enriched alloy 3 supplied as standard
Shelf Dim.(WxDxH, mm) 353 x 308 x 12 470 x 450 x 12
Max. Load Per Shelf 7 kg
Access Port 1
Access Port Position On The Back Side Rear Upper Left
Access Port Diameter Ø 30 mm
Power Failure Remote
Out of Temperature Setting V-B-R
High Temperature V-B-R
Out of CO2 Setting V-B-R
Out of O2 Setting V-B-R
Door Open V-B
Power Supply 220V / 60Hz
Noise Level 29 dB[A] 25 dB[A]
